NER 501- 800 NER 1200

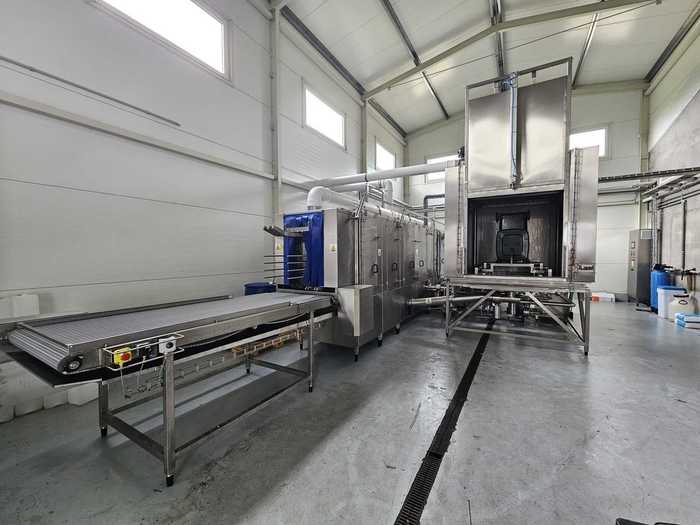

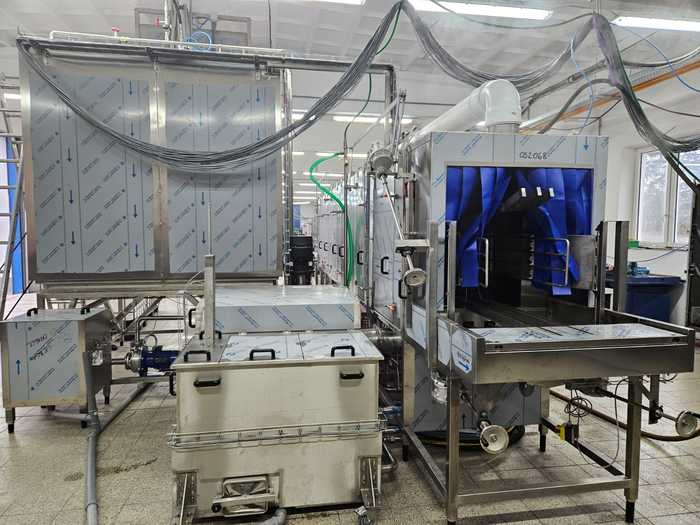

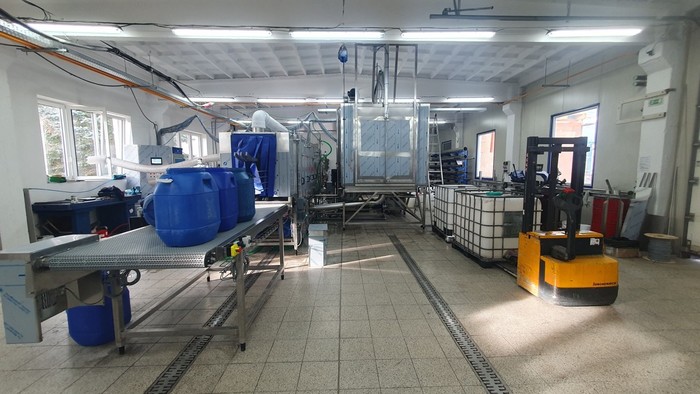

Continuous washing machine NER 501-800 for washing of barrels and their lids with additional chamber NER 1200 for washing IBCs and waste bins

Key advantages

• Washing of barrels and lids in the continuous part of the device; lids are positioned in a stainless steel adapter.
• Adjustable side and height guides for different types of barrels.
• Washing of the inside of barrels thanks to pneumatic nozzles and conveyor timing.

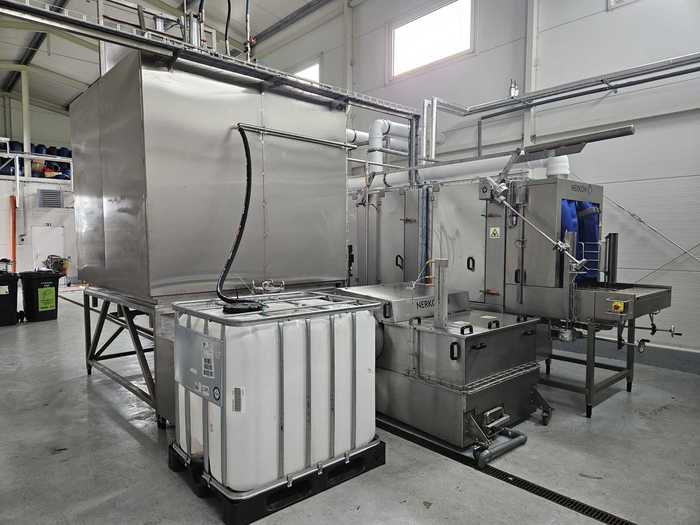

• Additional chamber for washing IBC containers and 120 l and 240 l waste bins in an adapter using solutions from individual modules from the continuous part of the device.
• Additional auger discharge for removing coarse dirt from the pre-washing module.

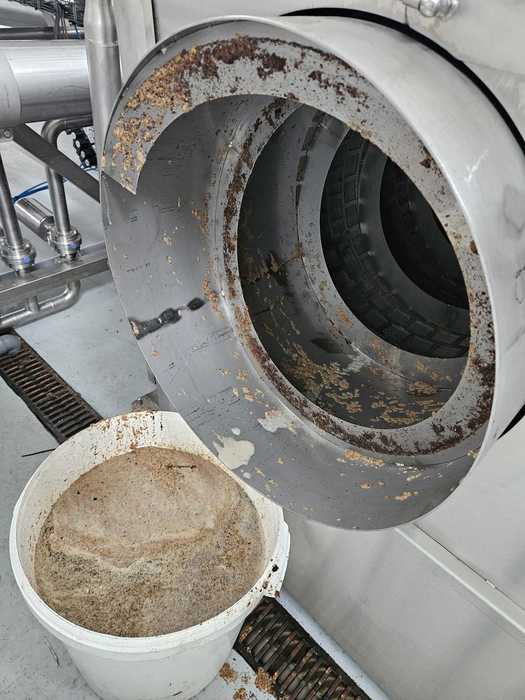

• Self-cleaning drum filter with rotating pump sieve in the washing module.
• Heating of the pre-wash and wash tanks with a hot water register.
• Thermal insulation of modules and tanks throughout the entire device.
• SIEMENS control with touch screen.
• Fixation of module doors with a central lock for each side.
• Outlet conveyor behind the outfeed table.
• Vapour exhaust from the inlet and outlet of the continuous part of the washer and from the chamber for washing IBCs and waste bins.

Optional accessories

• Water treatment plant – softening.
• Detergent dosing unit.
• Variable heating of the tanks.
• Rinse boiler with hot water register
• Drying module for the continuous part of the washing equipment.
• 11 kW drying fans instead of 7,5 kW.
• Neutral module 1,115 m in front of the drying module to reduce water transfer.
• Frequency converters for drying fans.

and more…
